NEED TO BUILD A BRANCHED HARNESS CABLE? Electro Adapter offers harness transitions for heavy duty and Military applications. Aluminum transitions are the right way to ensure cable protection.

Send us your part numbers. We will cross reference and send you a quote.

If you need to verify by drawings then see the PDF button below.



Aluminum Cable Transitions for Multi Leg Harness Construction. Includes a Banding Porch design which allows for cable and overall shields to be ground terminated. Outside conductive heat shrink tubing, nylon or, cloth weave and molded boots are used for a finished design and sealing. Shield sock material is offered by Electro Adapter. Cable Transitions can be constructed in any shape, size and angle required.

A selection of plating options, “T’, “W” and Intersection (“+”) Transition models are available upon request.

To compliment your cable harness design Electro Adapter has the correct saddle bar clamp or shield backshell to fit all military connectors. See our site at www.electro-adapter.com for details. Or, call us at 818 998-1198 in Chatsworth, California.

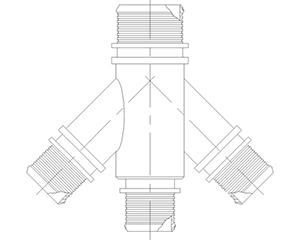

301 Drawing

The product offered is developed and manufactured by Electro Adapter, Inc. Please note that our products may not be an exact copy so certain details may be slightly different. Please refer to the Electro Adapter drawings available here for determination if our details will be in conflict with your applications.
