ELECTRO ADAPTER, INCORPORATED IS A VERTICALLY INTEGRATED MANUFACTURER OF CONNECTOR ACCESSORIES AND ADAPTERS.
WE SERVE THE AEROSPACE, MILITARY, MARINE, TRANSPORTATION AND INDUSTRIAL AUTOMATION SECTORS.
.
Previous
Next



FEATURED PRODUCT

308 Cable Backshell System

Assembly Instructions/dwgs



CLAMPS & STRAIN RELIEFS

Clamps & Strain Reliefs in MS and AS85049 designs-see Catalog-Clamps





RECTANGULAR BACKSHELLS

Shown are rectangular backshells available in many shapes and sizes for Military Connectors in MIL-DTL 83513 & 24308.



SPRING ADAPTERS

Displayed are cost saving Spring Adapters

Backshell Adapters do not need to be a drain on Project Budgets!



SPLIT SHELL

Split Shell 90 Degree Ready for Band or Spring Termination

Send us a list of your parts and we will cross match and quote back with surprising savings and value!





A variety of termination styles and cable entry solutions





308 SHELLS

Many of Electro Adapter’s backshells are available in Electroless Nickel and Zinc Nickel. We Plate in house

EAI CAGE CODE: 31461
818.998.1198 | SALES

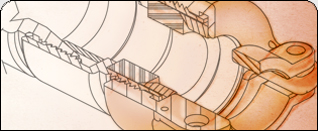

CIRCULAR Backshells



Electro Adapter Manufacturers Military and Mil Spec Connector Backshells in a banding backshell, spring termination backshell and molding adapters. Cable termination backshells can include cable strain relief clamps if required. Backshell Adapters are available in many shapes and sizes to aid in cable termination. Cable shield sock terminations along with shield splice bushings make cable terminations quick and reliable. Shrink Boot backshells are selected for environmental benefits.

Electro Adapter products include designs for "non-shielded" environmental circular backshells (A** Series) and for "shielded", environmental and non-environmental circular backshells (E** Series). These standard designs originated from the military AS85049, M85049, 85049, MIL-DTL-85049, MIL-C-85049 Qualified Backshell specifications list and meet the same stringent requirements as the military specifications. Two-piece designs are used if the cable entry exceeds the shell size. For cases where a two-piece design is not specified, consult factory for design details. The A** Series adapters include designs for a shrink boot backshell and a low-profile, cable strain relief clamp backshell.

CLICK HERE for AS85049 QPL List

Other custom cable termination backshells are available. Electro Adapter's EMP banding backshell series with a grooved band surface is specified in the catalog by category’ pull down menu in the “Products” tab below in the tool bar | .more info

RECTANGULAR Backshells



Banding backshell adapters for D-Subminiature Mil-DTL-24308), Micro-D Subminiature (Mil-DTL-83513) and ARINC (Mil-C-81659) connectors. Solid and split-shell shield termination backshell designs are specified with various mounting screw and mounting screw retention options. EMI/RFI Gasket versions are included. These cable shield termination designs encompass straight, 45°, 90°, and offset configurations, single and dual entries, and oval banded terminations. The oval entry connector backshell design allows for additional wire space or insulation. The 90° configurations offer both side and face mounted entries. Consult factory for other designs, including magnaform and crimp-ring cable shield sock terminations. | | more info..

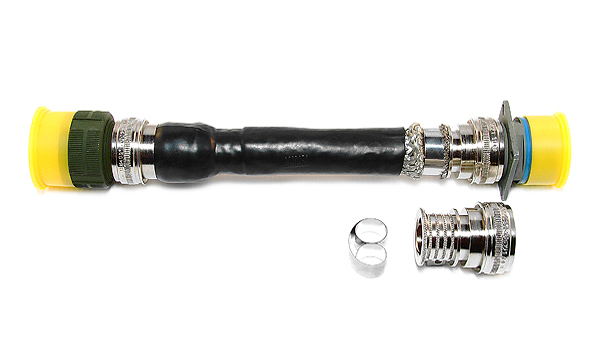

Cable Assemblies utilizing EAI Backshells

You are invited to copy and paste your part numbers for cross referencing into the | RFQ submittal page.


NEW STOCKING DISTRIBUTORS



LATEST NEW PRODUCT INVENTION!
902-138


ELECTRO ADAPTER’S LATEST NEW PRODUCT INVENTION!

902-138 COMBINATION BAND & MOLDING ADAPTERS for CABLE ASSEMBLY

A CONVIENT AND SIMPLE METHOD TO RUGGEDIZE CABLE TO CONNECTOR OVER MOLDING. THIS CONNECTOR ADAPTER CREATES A SPECIFIC AMOUNT OF SPACE TO ACCEPT AND HOLD MOLDING MATERIAL. CAN BE USED IN FREE POUR MOLDING OR INSIDE OF CLAM SHELL MOLDS TO ASSURE PROPER MECHANICAL STRENGHT IN BENDING MOMENTS, TORTION AND PULL. A DIAMOND KNURL AND FLANGE ARE ADDED FOR SECURE OPERATION.

THIS VERSATILE BACKSHELL CAN ALSO BE USED AS A BANDING ADAPTER. OFFERED IN A BASE MATERIAL OF ALUMINUM ALLOY: PLATING OPTIONS ARE MANY. CADMIUM OLIVE DRAB OR ELECTROLESS NICKLE ARE STANDARD.
